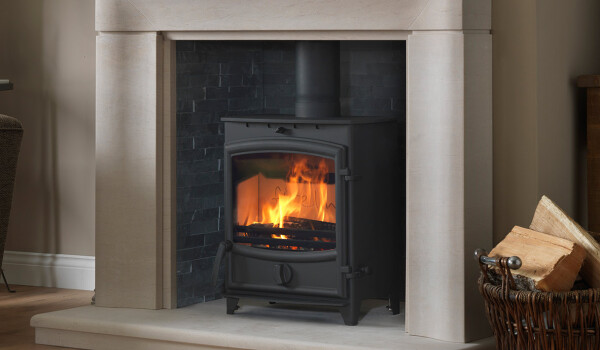

FX5W Wave Grey Slate Liners Limestone Back Hearth sfw

Fireline FX5W

Traditional or contemporary, these new Fireline FX5W multi-fuel stoves look as harmonious in a farmhouse inglenook as they do in a newly built town house. They are freestanding, with either a curved or square door and large flame picture. For people living in a smoke-controlled area, these Fireline stoves are SIA Ecodesign Ready and DEFRA exempt for wood burning. This means they meet the latest UK Clean Air Act, giving a greener source of heat.

Tags: 5Kw  Multi-fuel

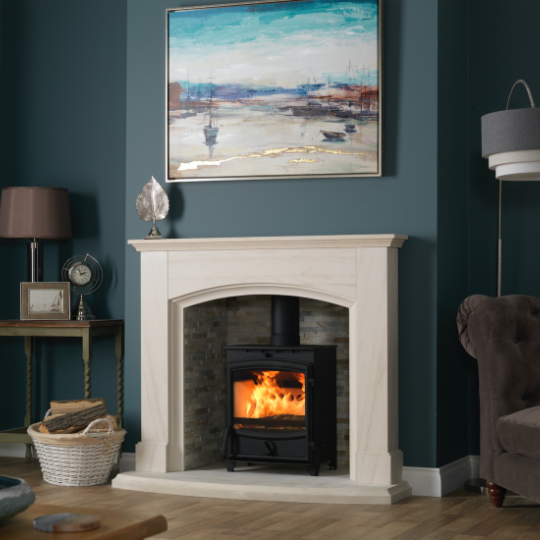

Fireline FX5W Camelia rustic slate liners

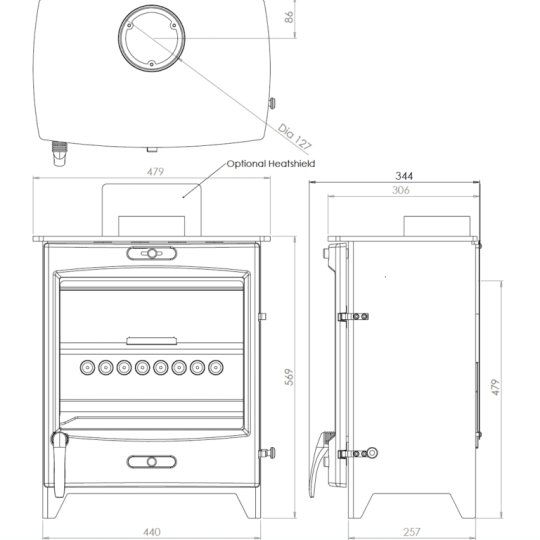

Fx5w dimensions v2


Fireline FX5W

The Fireline FX5W & FP5W give the large looks of the 8kW wide screen stove but maintaining the nominal heat output at 5kW. This is achieved by a subtle reduction in depth of the grate area whilst the overall 480mm width of the stove is the same as the larger 8kW model. This means that full 375mm logs can be accommodated on the standard multi-fuel grate, which incorporates a rotary riddle mechanism using well proven principles.

With a firebox lined with ceramic clean burn liners and Fireline’s own patented firebox air supply technology, clean burning was assured from the beginning – Ecodesign, CE and DEFRA compliance were formalities. 81% efficiency ensures top levels of fuel economy and the highly effective, proven Fireline airwash system gives fabulous views of the fire through the large glass panel.

It is the same as the Fireline FP5W stove, only with a curved door. In our opinion it is a solid ‘does what it says on the tin’ stove. Operated according to manufacturer’s instructions and using good quality fuel, a Fireline FX5W will give you years of economic, efficient heating, the glass will stay clean and you will enjoy a large view of the fire through the large uncluttered glass.

Take a look at the manufacturer’s website for more images – Charlton & Jenrick

 Download the Fireline Brochure here


Key Features

  • The Fireline FX5W is SIA compliant and DEFRA approved.
  •  It gives excellent performance and value for money.
  • Get piece of mind with all Fireline wood burning & multi-fuel stoves with 7 years extended parts warranty as standard.
  • SIA Ecodesign Ready 2022 certified – ultra clean burning.
  • 5mm and 10mm thick laser profiled and seam-welded steel construction for strength and long life.
  • Draught-controlled tertiary air system.
  • New contoured touch air controls knobs on all freestanding models.
  • Soft cool touch handles on all freestanding models.
  • High-quality cast iron doors.
  • New cast ceramic liner boards which are extremely durable and self cleaning.
  • Rotary cast iron grates on all freestanding models.
  • All models fitted with solid fuel burning kits as standard.
  • New Stainless-steel bar handle on inset models.
  • New Stainless-steel multi tool supplied with all stove models.
  • Interchangeable top or rear flue outlet on free standing models.
  • Powerful effective airwash.
  • Exceptionally large ceramic glass window.
  • Stainless steel ash pan and fixings.
  • Very clean burning.
  • TTi Airwash System Fireline’s integral patented TTi airwash system is a self-regulating system that provides a clean burn, and reduced CO and particulate emissions, resulting in very high efficiency and exceptionally clean glass.
